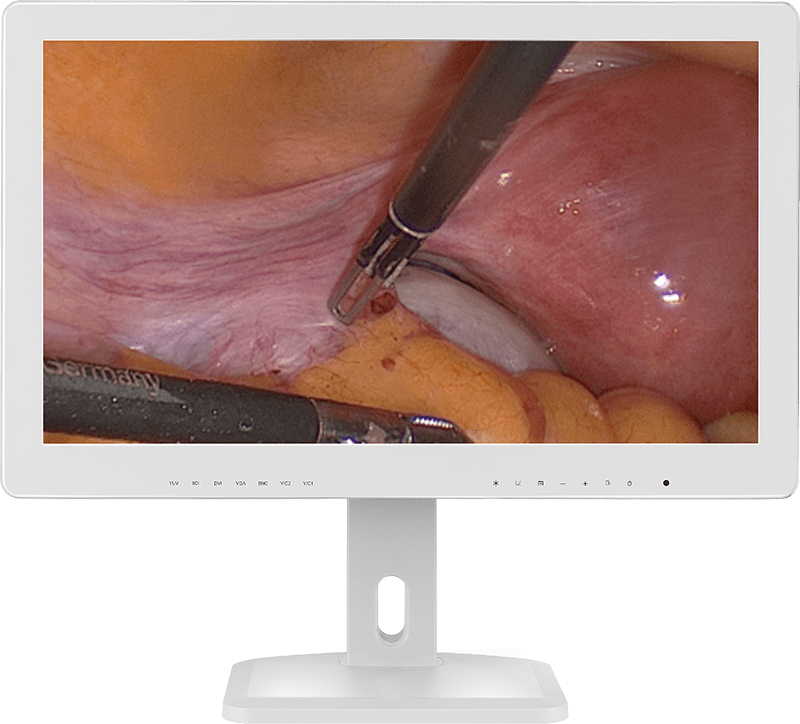

Endoscopic Surgical Display

Products Details

Product Specifications
Endoscopic Surgical DisplayDifference contrast
  •
  •   Model 27A20 26A20 24A20 22A20
  •   Panel size 27" 26" 24" 21.5"
  • Display parameters Resolution 3840*2160   1920*1080   1920*1200   1920*1080
  •   Scanning Frequency 60Hz   60Hz   60Hz   60Hz
  •   Dot pitch 0.1554*0.1554mm   0.300*0.300mm   0.270*0.270mm   0.24795*0.24795mm
  •   Grayscale 14bit   12bit   12bit   12bit
  •   Brightness 800cd/m²   450cd/m²   300cd/m²   250cd/m²
  •   Viewing angle H178°/V178°   H178°/V178°   H178°/V178°   H178°/V178°
  •   Contrast ratio 1000:1   1400:1   1000:1   1000:1
  •   Response time 14ms   18ms   14ms   14ms
  • Power waste Power ≤70W   ≤70W   ≤50W   ≤45W
  • Interface Input DVI/DP/HDMI/AUDIO   VGA/DVI/SVIDEO/SDI/BNC(AV)/YPbPr/RGB/RS232/USB   VGA/DVI/SVIDEO/SDI/BNC(AV)/YPbPr/RGB/RS232/USB   VGA/DVI/SVIDEO/SDI/BNC(AV)/YPbPr/RGB/RS232/USB
  •   Output -   BNC(AV)/S-VIDEO/YPbPr/SDI   BNC(AV)/S-VIDEO/YPbPr/SDI   BNC(AV)/S-VIDEO/YPbPr/SDI
  • Specifications Bare dimension(Without Base) 657.14mm*47.5mm*413.2mm   641.75mm*52.5mm*401.75mm   576.02mm*391.62mm*47.5mm   525.5mm*52.7mm*335.5mm
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
